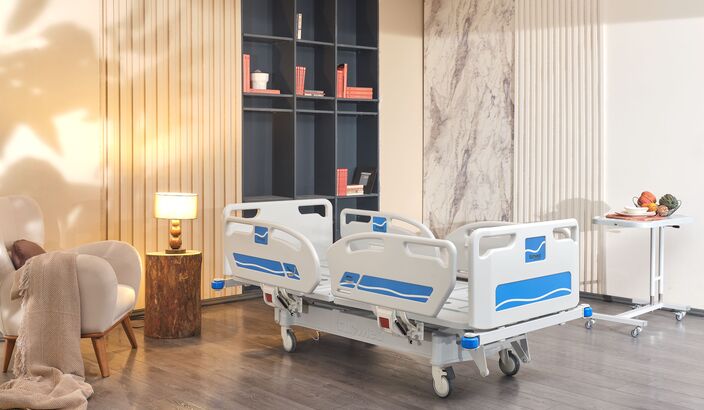

Bedstead & Bed & Accessory
Product Code : TM-D 4080
TECHNICAL DOCUMENT
• Height adjustment. (motorized)
• Backrest adjustment (motorized)
• Knee adjustment. (motorized)
• Toe. (manual)
• Back and knee sliding movement. (autocontour)
• Lateral tilt (tilt) adjustment. (motorized)
• Trendelenburg and reverse trendelenburg.(motorized)
• Railing control.
• The nurse control panel is locked.
• Electronic CPR.
• ABS bed platform. (removable)
• ABS heads. (removable)
• ABS railings.
• Angle indicators. (back, trendelenburg and tilt)
• Battery.
• IV pole. (height adjustable)
• Accessory slots.
• Wheels with central directional lock.
• Impact bumper wheels.
• Electrostatic powder coated body. (RAL 7035)
Overall Dimensions:
2030 x 1070 mm
Bed Platform:
1900 x 900 mm
Bed Height Adjustment:
550 - 900 mm
Maximum Back Angle:
75°
Maximum Knee Angle:
45°
Trendelenburg / Reverse Trendelenburg:
+ 12 ° / - 12 °
Lateral Tilt:
+ 17 ° / - 17 °
Autocontour (back - knee):
75-50 mm
Side Rail Height:
380 mm
Headboard Height:
435 mm
Under Bed Clearance:
235 mm
Wheels:
150 mm
Safe Working Load:
150 kg
Carrying (Loading) Capacity:
300 kg
• Weight scale system.
• Bed lenght extension.
• X-Ray cassette holder. (backrest)
• Manuel CPR at backrest.
• Orthopedics traction frame.
• Lifting Pole.
