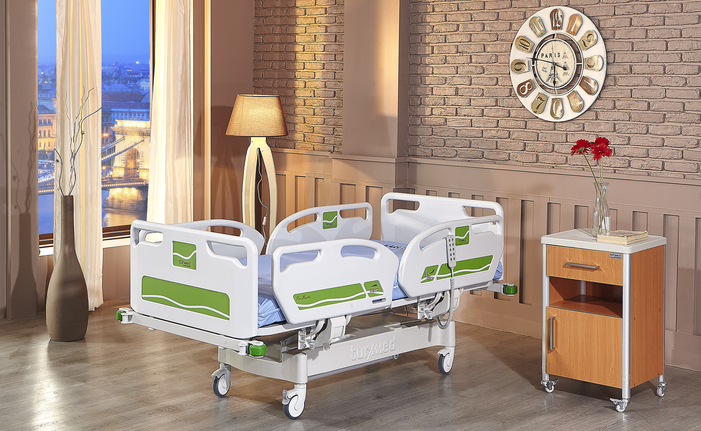

Product Code : TM-D 4080
TECHNICAL DOCUMENT
• Height adjustment. (motor)
• Backrest adjustment (motor)
• Thigh rest adjustment. (motor)
• Footrest. (manual)
• Auto-regression system.
• Lateral tilt (motor)
• Trendelenburg and reverse trendelenburg.(motor)
• Integrated side rail controls.
• Nurse control panel with locking system.
• Electronic CPR.
• ABS mattress platform. (detachable)
• ABS head and foot boards. (detachable)
• ABS side rails.
• Angle indicator. (back, trendelenburg)
• IV pole. (height adjustable)
• Accessory holders.
• Castors with central brake and direction lock systems.
• Protective corner bumpers.
• Control with pedal.
• Electrostatic powder coated body. (RAL 7035)
Overall Dimensions:
1070 x 2030 mm
Bed Platform:
900 x 1900 mm
Bed Height Adjustment:
550 - 900 mm
Maximum Back Angle:
75°
Maximum Knee Angle:
45°
Trendelenburg / Reverse Trendelenburg:
+ 17 ° / - 17 °
Lateral Tilt:
+ 12 ° / - 12 °
Autocontour (back - knee):
75-50 mm
Side Rail Height:
380 mm
Headboard Height:
435 mm
Under Bed Clearance:
235 mm
Wheels:
150 mm
Safe Working Load:
150 kg
Carrying (Loading) Capacity:
300 kg
• Weight scale system.
• Bed lenght extension.
• X-Ray cassette holder. (backrest)
• Manuel CPR at backrest.
• Orthopedics traction frame.
• Lifting Pole.
• Battery.
